Hard Surface Wear Protection: Boron Diffused CRV® & Elbow Combo

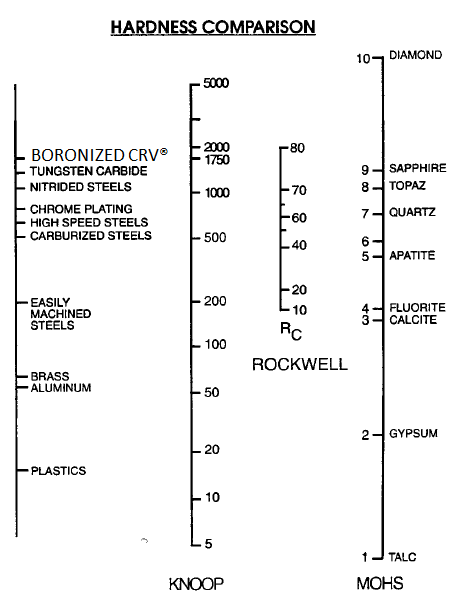

The new improved product, the boron diffused CRV® and elbow combination, has a Rockwell hardness of 80 making it harder than any known sand or catalyst used in the oil industry.
The CRV® rotates the streamlines so it has equal length traveling through an elbow.
There is no acceleration or deceleration of the fluid. Under this circumstance, it carries the particles as if it is a straight pipe which substantially reduces wear and tear of the elbow walls.
The current elbows are made with a long turning radius and wear out in approximately four to six weeks, leading to pipe failures, replacement & higher costs.
CRV® in combination with an elbow coated with hardened boron, has proven to solve the elbow erosion problems.
Quality Metal Erosion Protection System
Cheng Fluid Systems, Inc. understands the value of high performing parts that minimize maintenance and plant downtime.
A CRV® will significantly decrease wear, erosion, cavitation, vibration and abrasion problems.
A very hard, wear-resistant surface Boron diffused CRV® increases component wear life up to several times.
BORONIZING (Boriding) Treatment
Good corrosion resistance in many acidic and caustic environments.
Excellent high temperature properties to 1100°F.
Diffusion depths up to .020 inches are attainable.
Typical depths are .003 to .012 depending on the substrate.
High temperature chemical process creates very hard boron alloys.
Harder than tungsten carbide.
Low coefficient of friction.
Less costly base metals boron diffused outperform more costly untreated materials.
No voids at diffusion zone - 100% dense.
Welding is possible on boron treated components.
Environmentally safe - no toxic waste generated from process.
Our flow conditioners are custom made to specifically address each piping issue offering the greatest achievable flow correction.
